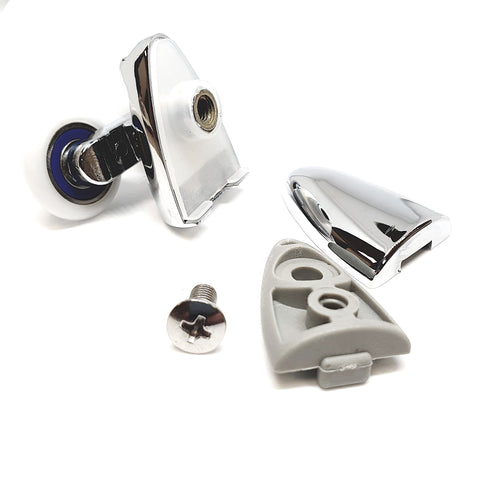

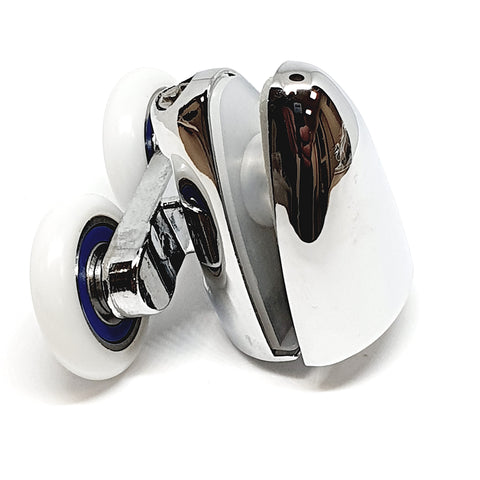

1 x Top Zinc Alloy Shower Door Roller/Runner/Wheel/Guide 23mm Wheel Diameter (6mm thick glass) K015

1 x Top Zinc Alloy Shower Door Rollers For Sliding Shower Doors

Description:

• 1 x Top roller supplied.
• Luxurious top quality product.
• 100% new.
• The truck is held in place with a screw and this is covered with a chromed plastic cover making them pleasing to the eye and easy to clean.
• Roller is height adjustable to allow the door to be lined up to mate with the frame or magnetic seal where you have a pair of doors.
• Swivel action to also fit curved and quadrant showers.
• Bottom rollers also available to buy.

Specifications:

•  A  - Wheel diameter: 23mm
•  B  - Wheel thickness: 5.8mm.
•  C  - Diameter of hole in glass: 12mm.
•  D  - Glass thickness: 6mm
•  E  - Distance between the centre of the fixing hole and the edge of the glass:18mm.
•  F  - Distance from the face of the glass to the inside of the wheel: 18.5mm

Materials:

• 304 stainless steel micro-bearing.
• Zinc Alloy

For Matching Bottom Rollers Click Here.

If you still cannot find the part you are looking for or need to ask any additional questions please contact us.
