2 x Shower Single Bottom Door Rollers/Runners/ Replacements /Spares/Wheels 23mm or 25mm Wheel Diameter L073

Set of 2 Single Bottom Pivoting Chromeplated Shower Door Rollers

Description:

• 2 single bottom rollers supplied.
• 100% new and high quality.

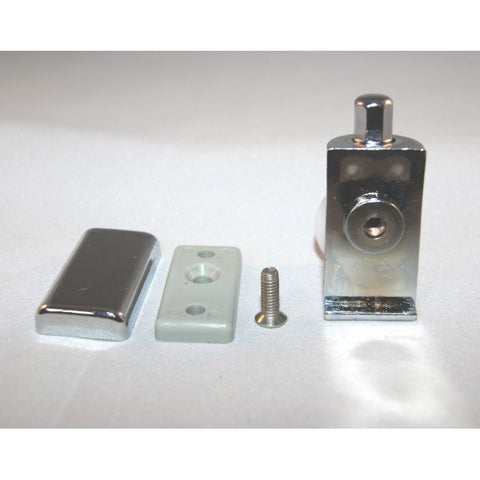

• The truck is held in place with a nut and this is covered with a chromed plastic cover making them pleasing to the eye and easy to clean.
• Bottom rollers are spring loaded.
• Will fit both straight and curved shower enclosures.
• Choice of 23mm or 25mm wheel diameter (please choose from dropdown menu).
• Matching rollers available: top/bottom, single/double.

Specifications:

•  A  - Wheel Diameter: 23mm or 25mm (please choose from dropdown menu).
•  B  - Wheel thickness: 6mm.
•  C  - Diameter of hole in glass: 12mm.
•  D  - Glass thickness: 5-6mm.
•  E  - Distance between centre of fixing hole to edge of glass: 18mm.
•  F  - Distance from the face of glass to the wheel: 17mm

Materials:

• Plastic.
• 304 stainless steel micro-bearing.
• POM ABS brass axis - never rust.
• Surface: Chrome.

Other Products:

• For matching variations of this rollers please click here.
